Stereo Receiver U.A.I

Fidelity Radio Co. Ltd.; London

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
Fidelity Radio Co. Ltd.; London

Year
1973 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
214112

Schematics

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372577) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

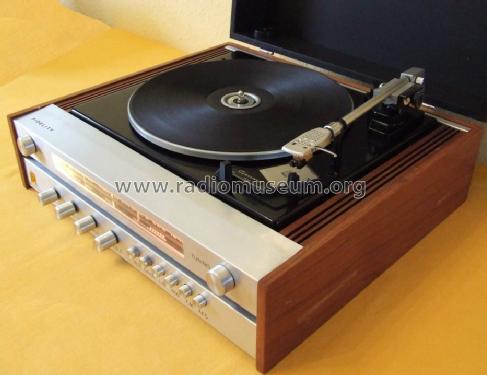

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1180188) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372574) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372578) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372580) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372581) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372576) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Stereo Receiver U.A.I; Fidelity Radio Co. (ID = 1372575) Radio — Fidelity Radio Co. Stereo Receiver U.A.I (2)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 470/10700 kHz

Wave bands
Broadcast, Long Wave and FM or UHF.

Details
Record Player (not changer)

Power type and voltage
Alternating Current supply (AC) / 220; 250 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
12 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Stereo Receiver U.A.I - Fidelity Radio Co. Ltd.;

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
425 x 180 x 375 mm / 16.7 x 7.1 x 14.8 inch

Notes
Record player Garrard SP25 MKII,
Pickup: Pickering XV-15 1200E.
Speed: 16-33-45-78 Upm.

Net weight (2.2 lb = 1 kg)
11.6 kg / 25 lb 8.8 oz (25.551 lb)

Mentioned in
-- Original-techn. papers.

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
