• Country
• Norway

• Manufacturer / Brand
• Gastor; Oslo

• Year
• 1944–1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82873

• Number of Tubes
• 4

• Valves / Tubes
• DK21 DF21 DAC21 DL21

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 90/1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

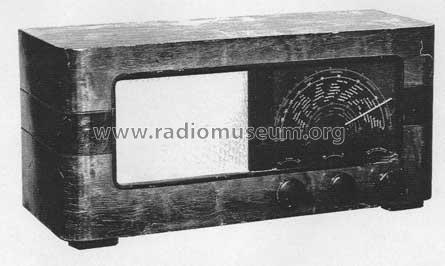

• Model: 434B - Gastor; Oslo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 525 x 245 x 205 mm / 20.7 x 9.6 x 8.1 inch

• Price in first year of sale
• 336.00 NKr

• Literature/Schematics (1)
• -- Collector info (Sammler)

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.

• Other Models

• Here you find 16 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gastor; Oslo
