Tellus 476

Tellus 476; Gastor; Oslo (ID = 55669) Radio
Use red slider bar for more.
Tellus 476; Gastor; Oslo (ID = 55669) Radio

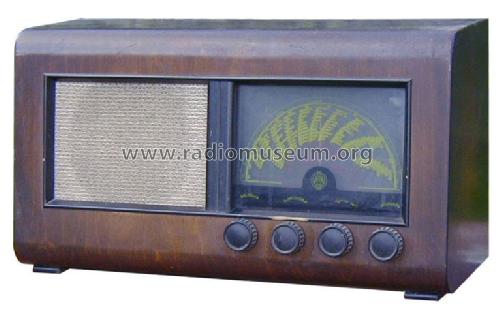

Gastor; Oslo: Tellus 476 [Radio] ID = 55669 766x474
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tellus 476, Gastor; Oslo

Country:  Norway
Manufacturer / Brand:  Gastor; Oslo
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH35 EBF32 EF39 EL33 EM34 AZ31
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22.5 cm = 8.9 inch
Power out
from Radiomuseum.org Model: Tellus 476 - Gastor; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 570 x 320 x 220 mm / 22.4 x 12.6 x 8.7 inch
Price in first year of sale 446.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Gastor; Oslo
Here you find 16 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
