P1-SPU

Gates Radio & Supply Co.; Quincy, IL

Data
Forum
Pictures
Collections

  • Year
  • 1936 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 41816

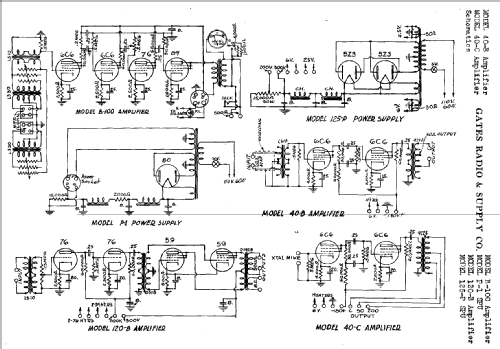

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 80
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: P1-SPU - Gates Radio & Supply Co.;
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Literature/Schematics (1)
  • Riders 7-7
