• Year
  • 1948
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 41835
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC 40 to 60 cycles, 105 to 125 Volts or DC 105 to 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1 W (1.75 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 114W - General Electric Co. GE;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

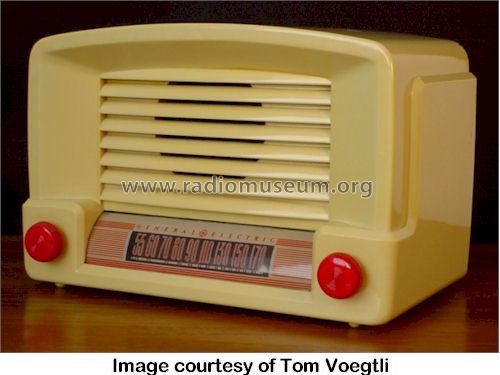

  • The General Electric 114W is an AC/DC operated 5 tube BC band receiver.  The BC band range is 540 to 1720 kHz.  Has built-in loop antenna. Cabinet color is Ivory.

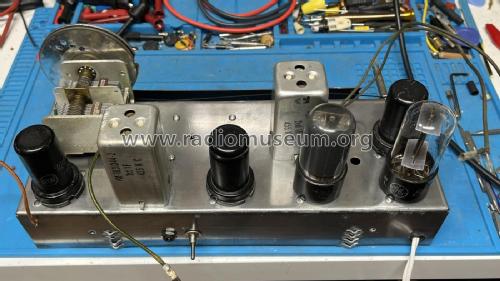

    The schematic and chassis used in this model is also used in models 102, 102W, 107, 107W, 114, 115, 115W, 135 and 136.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 18 = 1949 and before
