115W ; General Electric Co. (ID = 246126) Radio
General Electric Co.: 115W [Radio] ID = 246126 800x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model 115W, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Ebay Nr. 140016555413 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1948 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT or 35Z5G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC 40 to 60 cycles, 105 to 125 Volts or DC 105 to 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (1.75 W max.)
from Radiomuseum.org Model: 115W - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.5 x 8 x 7.5 inch / 318 x 203 x 191 mm
Notes

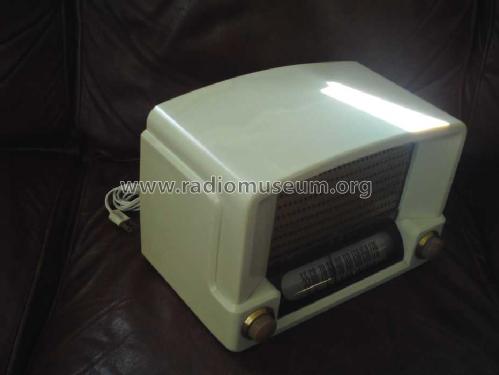

The General Electric 115W is an AC/DC operated 5 tube BC band receiver.  The BC band range is 540 to 1720 kHz.  Has built-in loop antenna. Cabinet color is Ivory.

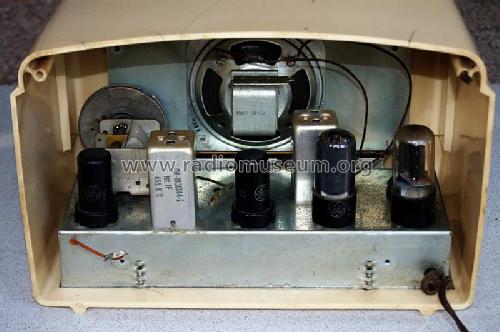

The schematic and chassis used in this model is also used in models 102, 102W, 107, 107W, 114, 114W, 115, 135 and 136.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949 (Page 39)
Literature/Schematics (2) General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 105)

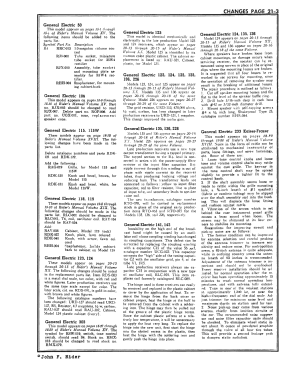

Literature/Schematics (3) Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (Riders GE 18-13 to 18-14)
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 41, Date 5/48, Folder 4811-8)
