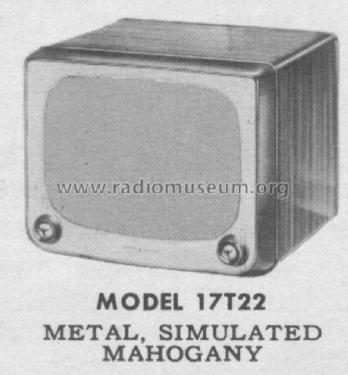

17T22UHF

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1955
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 227595
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycle, 115 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.9 W (1.5 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 17T22UHF - General Electric Co. GE;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • The General Electric 17T22UHF is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Has Qty(1) Selenium Rectifier and Qty(2) Germanium Diodes. Equipped with VHF tuner RJX-071/072, UHF tuner RUX-010/011 or RUX-012 and picture tube 17HP4A. "Pacers" series, mahogany grain finish.

  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (General Electric Datasheet ER-S-N55)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
