17T3316, 317, 318, 319, 320, 321 Ch= M5
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1959 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 157730
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17T3316, 317, 318, 319, 320, 321 Ch= M5 - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Notes
- 21" b/w Television Receiver, Picture tube: 21ESP4, Some models are equipped with continuous UHF tuner, tube quantity UHF: 17.
Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
- Literature/Schematics (1)

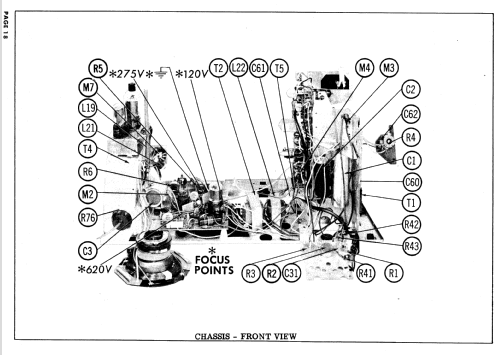

- Photofact Folder, Howard W. SAMS (Date 11-59, Set 465, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
