220 ; General Electric Co. (ID = 107402) Radio
General Electric Co.: 220 [Radio] ID = 107402 813x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 220, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner

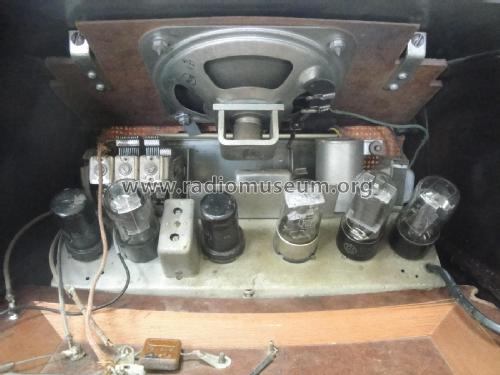

Valves / Tubes 6: 12SK7 12SA7 12SG7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details

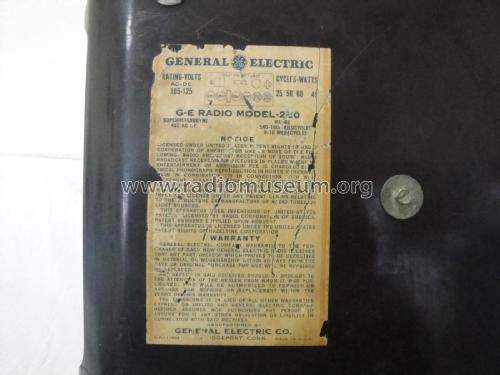

Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out 1.25 W (unknown quality)
from Radiomuseum.org Model: 220 - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 210 x 230 mm / 13 x 8.3 x 9.1 inch
Notes

Built in loop antenna for BC.

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

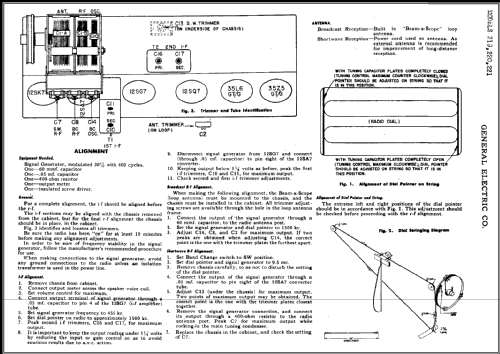

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 4, Folder 464-1)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (January 1946 page 35.)
Literature/Schematics (3) General Electric Folder 1000M-PUB.NO. 175-59 for 1947.


All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Here you find 2718 models, 1911 with images and 1914 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
General Electric Co.: 220
Threads: 1 | Posts: 1
Hits: 1390     Replies: 0
general-el: Skalen Lampe für den General Electric Type 220
Wolfram Zylka
12.Apr.05
  1





Kennt jemand eine Bezugsquelle ( aus Porto Gründen ideal in D )



für diese 115 Volt Lampe 7 - 10 Watt.  Das Sockelgewinde  ist größer als E 10  und kleiner

als E 14



Danke für jeden Hinweis



Wolfram Zylka
