414

414 ; General Electric Co. (ID = 142190) Radio
414 ; General Electric Co. (ID = 800938) Radio 414 ; General Electric Co. (ID = 591533) Radio
414 ; General Electric Co. (ID = 591531) Radio 414 ; General Electric Co. (ID = 591532) Radio
414 ; General Electric Co. (ID = 591534) Radio 414 ; General Electric Co. (ID = 877637) Radio
414 ; General Electric Co. (ID = 1211462) Radio 414 ; General Electric Co. (ID = 1211463) Radio
414 ; General Electric Co. (ID = 1211464) Radio 414 ; General Electric Co. (ID = 1510030) Radio
Use red slider bar for more.
414 ; General Electric Co. (ID = 800938) Radio
General Electric Co.: 414 [Radio] ID = 800938 648x419
Select picture or schematic to display from thumbnails on the right and click for download.

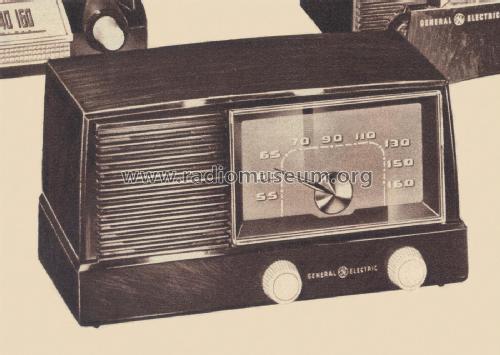

For model 414, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.75 W (unknown quality)
from Radiomuseum.org Model: 414 - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Color: Mahogany; similar Models: #415 Ivory; #416 Maroon; #430 wooden cabinet;
Price in first year of sale 24.95 USD
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

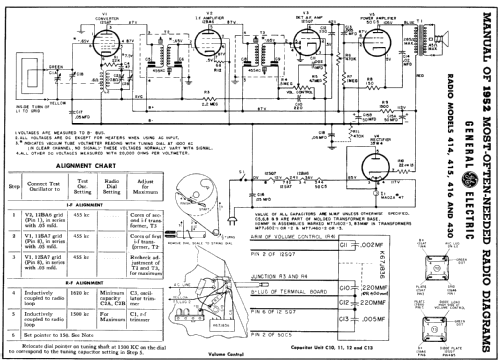

Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in Guide to Old Radios
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 12, 1952
