• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90369

• • Brand: Musaphonic

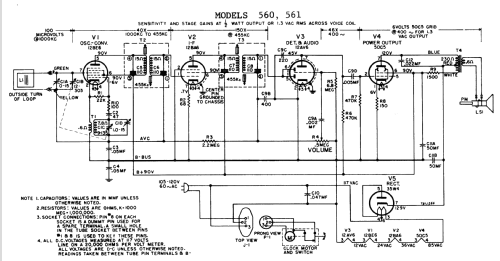

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 560 - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

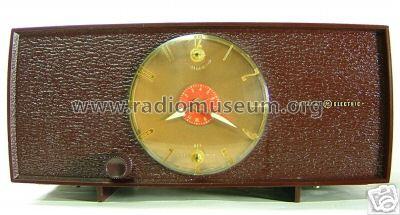

• The General Electric 560 is an AC operated 5 Tube AM Receiver with Electric Clock. Has built in loop antenna.  Cabinet color is dark brown.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  560	Dark Brown
  561	Ivory



• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954 (Page 48)

• Literature/Schematics (2)
• General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 19)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Date 8-54, Set 249, Folder 7)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
