580 ; General Electric Co. (ID = 2543836) Radio
General Electric Co.: 580 [Radio] ID = 2543836 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model 580, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
ebay.it_264779045790 seller maalox2000

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 580 - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)

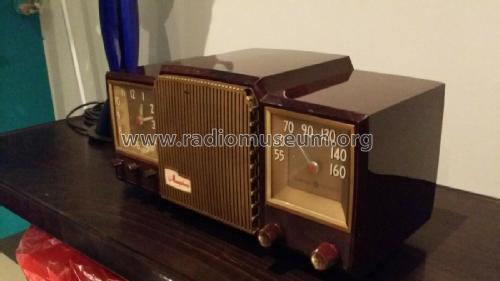

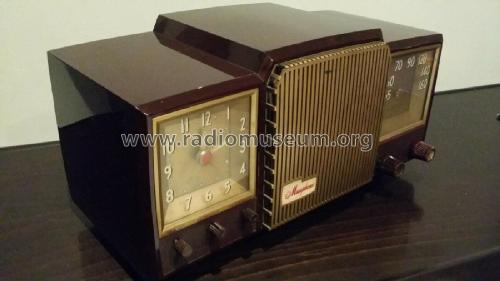

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 14.25 x 7.375 x 7.25 inch / 362 x 187 x 184 mm
Notes Clock Radio. Color = Mahogany.
Source of data Beitman Radio Diagrams, Vol. 15, 1955
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Egon Penker. See "Data change" for further contributors.
