60 Musaphonic ; General Electric Co. (ID = 1369873) Radio
General Electric Co.: 60 Musaphonic [Radio] ID = 1369873 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model 60 Musaphonic, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner

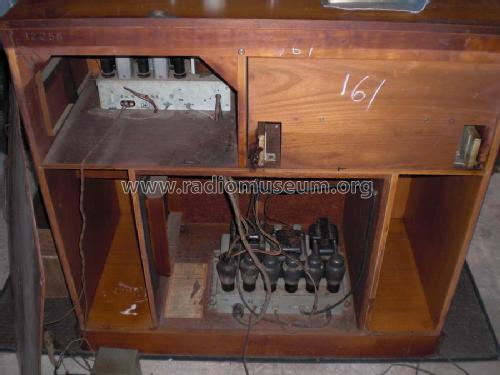

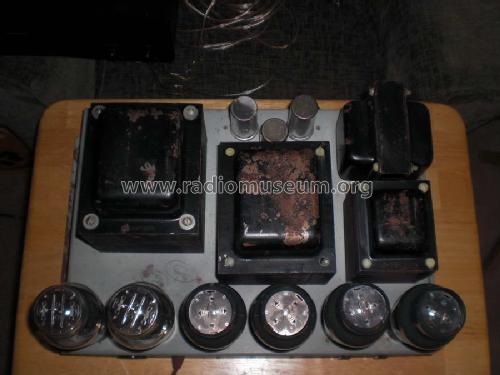

Valves / Tubes 22: 6AB7 7A4 6AB7 6SK7 6E5 6SK7 6SJ7 6SJ7 6H6 6SK7 6SA7 6SK7 6R7 6Y6G 6SQ7 6L6G 6L6G 6L6G 6L6G 5Y3G 5U4G 5U4G
Main principle Superhet with RF-stage; ZF/IF 455/4300 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 45 W (unknown quality)
from Radiomuseum.org Model: 60 Musaphonic - General Electric Co. GE;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 39 x 37 x 20 inch / 991 x 940 x 508 mm
Notes Record Changer and Recording Unit JM-1C.
External source of data E. Erb 3-907007-36-0
Source of data Rider's Perpetual, Volume 14 = covering up to late 1942 (C=1944)
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) General Electric Radio Service Notes 1939-1942


All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Here you find 2609 models, 1821 with images and 1862 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
