- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90400
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.

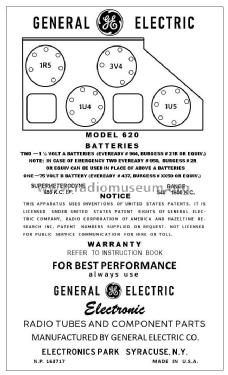

- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 75 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 620 - General Electric Co. GE;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9.8 x 6.5 x 2.5 inch / 249 x 165 x 64 mm
- Notes
-
Weight is without batteries.
- Net weight (2.2 lb = 1 kg)
- 3 lb (3 lb 0 oz) / 1.362 kg
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 14, 1954
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-55, Set 262, Folder 9)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
