- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 41966
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (1.75 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 64 - General Electric Co. GE;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-

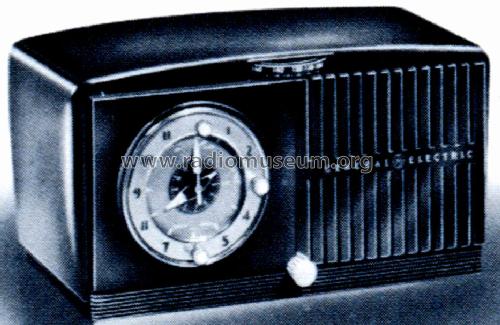

The General Electric Model 64 is an AC Operated 5 Tube AM Receiver with Electric Clock. The BC band frequency tuning range is 540 to 1600kHz. Has built-in loop antenna. Cabinet color is Brown Mahogany.
Early production units used discrete components for C16, C17, C19 and C20. Later production units used a couplate in place of these components.
The following models use the same schematic and cabinet:
Model Cabinet Color 64 Brown Mahogany 65 Ivory (White)
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Literature/Schematics (1)

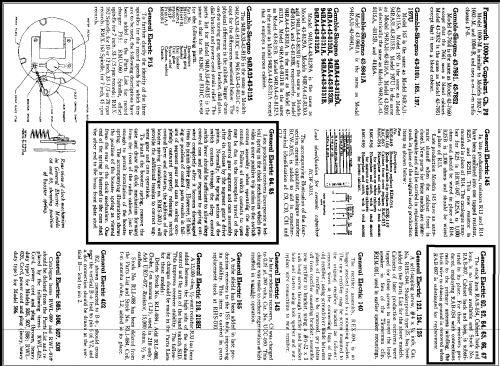

- Rider's Perpetual, Volume 20 = covering 1950 (Pages 3 to 8)
- Literature/Schematics (2)
- General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 page 3)
- Literature/Schematics (3)
- General Electric Folder R75-568 200M 3-49 for 1949.
