C430A ; General Electric Co. (ID = 52822) Radio

C430A ; General Electric Co. (ID = 510537) Radio

C430A ; General Electric Co. (ID = 510538) Radio

C430A ; General Electric Co. (ID = 510539) Radio

C430A ; General Electric Co. (ID = 510540) Radio

C430A ; General Electric Co. (ID = 1451199) Radio

C430A ; General Electric Co. (ID = 1451200) Radio
C430A ; General Electric Co. (ID = 510536) Radio C430A ; General Electric Co. (ID = 1451207) Radio
C430A ; General Electric Co. (ID = 1451208) Radio C430A ; General Electric Co. (ID = 1451209) Radio
C430A ; General Electric Co. (ID = 1451210) Radio C430A ; General Electric Co. (ID = 1451211) Radio
C430A ; General Electric Co. (ID = 1451212) Radio C430A ; General Electric Co. (ID = 1451214) Radio
Use red slider bar for more.
C430A ; General Electric Co. (ID = 510536) Radio

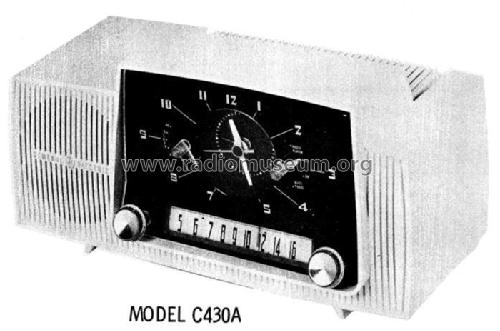

General Electric Co.: C430A [Radio] ID = 510536 700x464
Select picture or schematic to display from thumbnails on the right and click for download.
For model C430A, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 105 to 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (1.5 W max.)
from Radiomuseum.org Model: C430A - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

The General Electric C430A is an AC operated 5 tube BC band clock radio.  The BC band range is 540 to 1600 kHz.  Has built-in loop stick antenna which is mounted on tuning capacitor. Cabinet color is Antique White.

The following models use the same schematic and cabinet but have different cabinet colors:

Model Number Cabinet Color
C430A Antique White
C431A Pink
C432A Rose Beige

Beitman Vol 20 lists only models C430A and C431A, however GE Service manual lists all 3 models together and so schematic in Beitman is also applicable to model C432A.

Source of data Beitman Radio Diagrams, Vol. 20, 1960

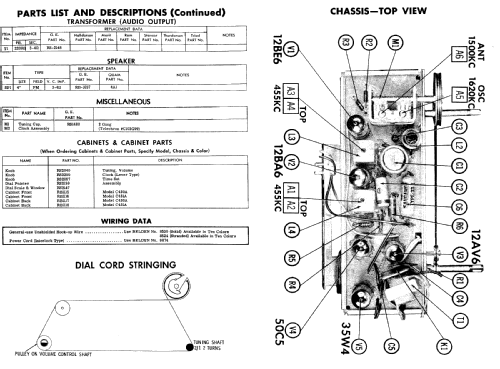

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-60, Set 480, Folder 6)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 20, 1960 (Page 49)
Literature/Schematics (3) General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 44)

Model page created by Trev Levick. See "Data change" for further contributors.
