GE Junior (M) S-22 tombstone

GE Junior S-22; General Electric Co. (ID = 421399) Radio
GE Junior S-22; General Electric Co. (ID = 417500) Radio GE Junior S-22; General Electric Co. (ID = 417501) Radio
GE Junior S-22; General Electric Co. (ID = 417502) Radio GE Junior S-22; General Electric Co. (ID = 417503) Radio
GE Junior S-22; General Electric Co. (ID = 1052257) Radio GE Junior S-22; General Electric Co. (ID = 1052258) Radio
GE Junior S-22; General Electric Co. (ID = 1052259) Radio GE Junior S-22; General Electric Co. (ID = 1052260) Radio
GE Junior S-22; General Electric Co. (ID = 1052261) Radio GE Junior S-22; General Electric Co. (ID = 1052262) Radio
Use red slider bar for more.
GE Junior S-22; General Electric Co. (ID = 417500) Radio
General Electric Co.: GE Junior S-22 [Radio] ID = 417500 525x700
Select picture or schematic to display from thumbnails on the right and click for download.

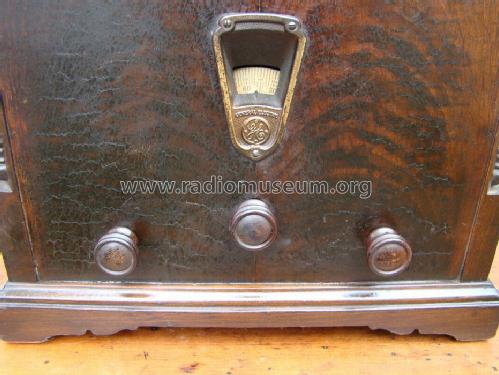

For model GE Junior (M) S-22 tombstone, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 35 24 27 35 27 45 45 80
Main principle Super-Heterodyne (Super in general); ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: GE Junior S-22 [tombstone] - General Electric Co. GE;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 350 x 500 x 260 mm / 13.8 x 19.7 x 10.2 inch
Notes

Phonograph pick up connection Schematic is similar to model R7,R9AC(RCA).

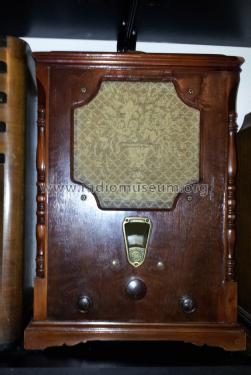

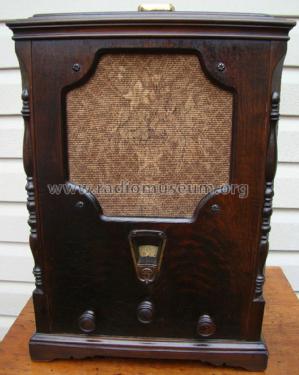

Wood with bouquet embroidered grille cloth.

Stein "Cathedral & Tombstone Radios" lists 5 tubes for this model.



Net weight (2.2 lb = 1 kg) 16.7 kg / 36 lb 12.5 oz (36.784 lb)
Price in first year of sale 72.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Riders 1-12 , Riders 2-7 (RCA)
Literature/Schematics (2) Machine Age to Jet Age II (page 146.)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 123.)


All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Here you find 2598 models, 1800 with images and 1851 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
General Electric Co.: GE Junior S-22
Threads: 1 | Posts: 2
Hits: 555     Replies: 1
general-el: Power tube S-22
Mauro Cattaneo
30.Aug.17
  1

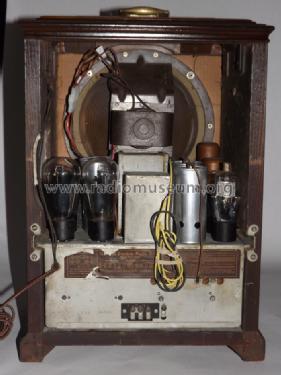

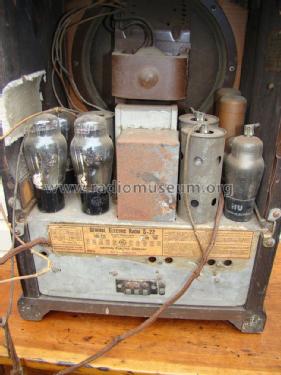

Hello, on my S-22 chassis on the paper stamped on the back side i read, back of 80 tube, two TUBE  RCA UY247, there are missing, while looking the schematics there are two 45 tubes, what are the right tube i va to insert?

regards,Mauro

Steffen Thies
31.Aug.17
  2

Hello Mauro,

if you check the data here, you will see that the 247 is a penthode with the same heater voltage as the 45. So this may be a later upgrade. A look at the socket will show which it is!

Regards,

Steffen



General Electric Co.: GE Junior S-22
End of forum contributions about this model
