• Year
  • 1939–1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 42307
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-125 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 12 inch = 30.5 cm
  • Power out
  • 8.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

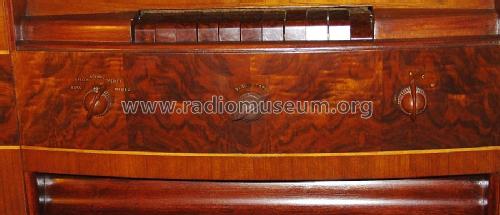

  • Model: HJ-1205 - General Electric Co. GE;
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 32.2 x 41 x 15 inch / 818 x 1041 x 381 mm
  • Notes
  • Visualux dial.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference

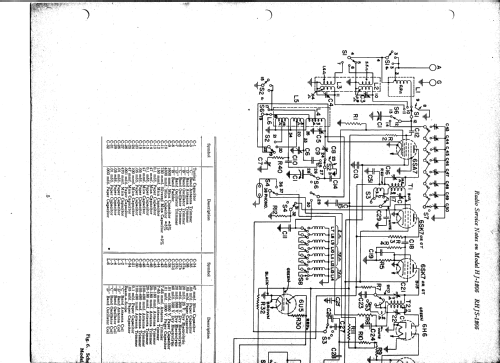

  • Rider's Perpetual, Volume 11 = ca. 1940 and before
  • Literature/Schematics (1)

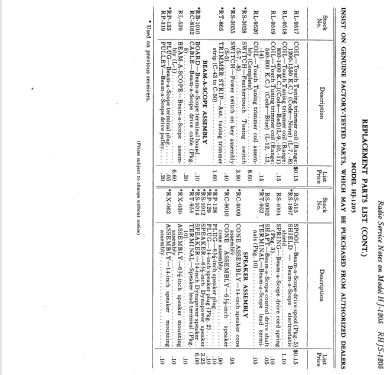

  • General Electric Radio Service Notes 1939-1942
  • Literature/Schematics (3)
  • General Electric Folder 13-497-W for 1941.
