HJ-612

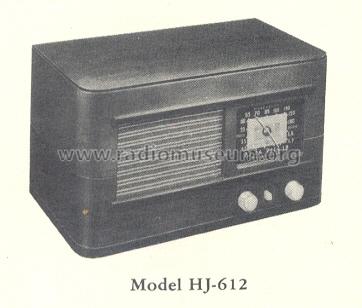

HJ-612 ; General Electric Co. (ID = 1127959) Radio

HJ-612 ; General Electric Co. (ID = 1127960) Radio

HJ-612 ; General Electric Co. (ID = 1127961) Radio

HJ-612 ; General Electric Co. (ID = 1127962) Radio

HJ-612 ; General Electric Co. (ID = 59307) Radio

HJ-612 ; General Electric Co. (ID = 168492) Radio
HJ-612 ; General Electric Co. (ID = 1254883) Radio HJ-612 ; General Electric Co. (ID = 1524930) Radio
HJ-612 ; General Electric Co. (ID = 1524929) Radio HJ-612 ; General Electric Co. (ID = 159512) Radio
HJ-612 ; General Electric Co. (ID = 608676) Radio HJ-612 ; General Electric Co. (ID = 608677) Radio
HJ-612 ; General Electric Co. (ID = 608678) Radio HJ-612 ; General Electric Co. (ID = 720512) Radio
HJ-612 ; General Electric Co. (ID = 1397044) Radio HJ-612 ; General Electric Co. (ID = 1524927) Radio
Use red slider bar for more.
HJ-612 ; General Electric Co. (ID = 1254883) Radio
General Electric Co.: HJ-612 [Radio] ID = 1254883 933x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model HJ-612, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7GT 6Q7GT 6J5GT 25L6GT 25Z6GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.4 W (unknown quality)
from Radiomuseum.org Model: HJ-612 - General Electric Co. GE;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12.5 x 7.5 x 7.3 inch / 318 x 191 x 185 mm
Notes

Airplane-type dial.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Machine Age to Jet Age II (page 141.)
Literature/Schematics (1) General Electric Radio Service Notes 1939-1942
