J-1106

J-1106 ; General Electric Co. (ID = 1130774) Radio

J-1106 ; General Electric Co. (ID = 1130775) Radio

J-1106 ; General Electric Co. (ID = 1130776) Radio

J-1106 ; General Electric Co. (ID = 1130777) Radio

J-1106 ; General Electric Co. (ID = 168943) Radio
J-1106 ; General Electric Co. (ID = 1770593) Radio J-1106 ; General Electric Co. (ID = 160850) Radio
J-1106 ; General Electric Co. (ID = 707369) Radio
Use red slider bar for more.
J-1106 ; General Electric Co. (ID = 1770593) Radio
General Electric Co.: J-1106 [Radio] ID = 1770593 852x1136
Select picture or schematic to display from thumbnails on the right and click for download.
For model J-1106, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6SK7 6SA7 6SK7 6J5GT 6SQ7 6J5GT 6K6GT 6K6GT 6K6GT 6K6GT 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-125 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 14 inch = 35.6 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: J-1106 - General Electric Co. GE;
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 29.2 x 40 x 15 inch / 742 x 1016 x 381 mm
Notes Beam-a-Scope.
External source of data Ernst Erb
Source of data Pre-War Consoles

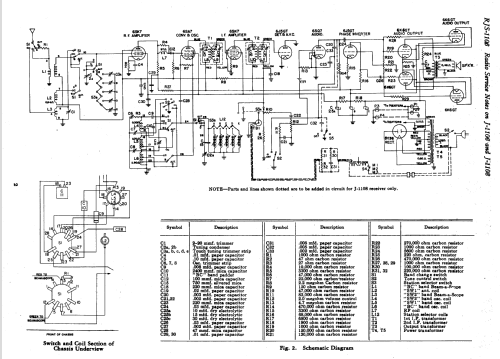

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Literature/Schematics (1) General Electric Radio Service Notes 1939-1942
