J83 ; General Electric Co. (ID = 1673878) Radio
General Electric Co.: J83 [Radio] ID = 1673878 600x800

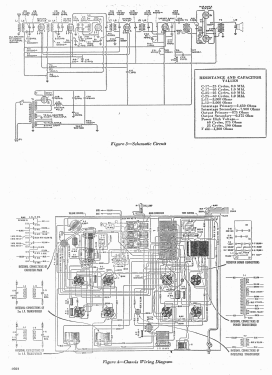

Select picture or schematic to display from thumbnails on the right and click for download.
For model J83, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 47 47 55 56 58 58 58 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: J83 - General Electric Co. GE;
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 13 x 20 x 11 inch / 330 x 508 x 279 mm
Notes similar to RCA R-73
Net weight (2.2 lb = 1 kg) 18.3 kg / 40 lb 4.9 oz (40.308 lb)
Price in first year of sale 59.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Machine Age to Jet Age II
Literature/Schematics (1) Cathedral & Tombstone Radios (page 120.)
