JE-530 ; General Electric Co. (ID = 2395277) Radio

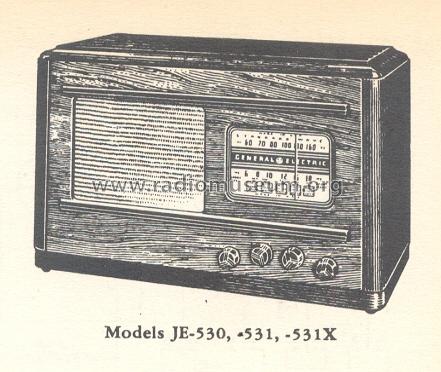

General Electric Co.: JE-530 [Radio] ID = 2395277 1320x820
Select picture or schematic to display from thumbnails on the right and click for download.
For model JE-530, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Foto por cortesía de D. Andrés Mora Rojas (Santiago-Chile)

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: JE-530 - General Electric Co. GE;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.5 x 9 x 7.2 inch / 368 x 229 x 183 mm
Notes Universal Power supply.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Literature/Schematics (1) General Electric Radio Service Notes 1939-1942
