• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 120905
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: K105 - General Electric Co. GE;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 46 x 26 x 14 inch / 1168 x 660 x 356 mm
  • Notes

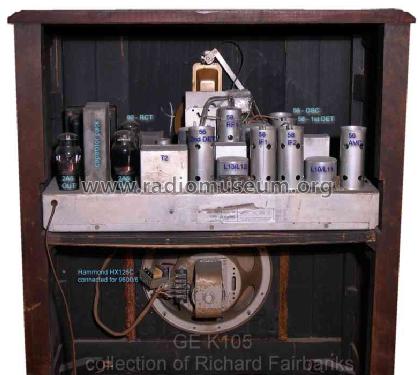

  • Six-legged lowboy. Police band 1400-2800 kc. Chassis similar to RCA Victor Model 261, but different cabinets.
  • Author
  • Model page created by Richard Fairbanks. See "Data change" for further contributors.
