P1710C

P1710C ; General Electric Co. (ID = 630938) Radio P1710C ; General Electric Co. (ID = 461150) Radio
P1710C ; General Electric Co. (ID = 461149) Radio P1710C ; General Electric Co. (ID = 461151) Radio
P1710C ; General Electric Co. (ID = 461153) Radio P1710C ; General Electric Co. (ID = 630937) Radio
P1710C ; General Electric Co. (ID = 949127) Radio P1710C ; General Electric Co. (ID = 949128) Radio
P1710C ; General Electric Co. (ID = 949130) Radio P1710C ; General Electric Co. (ID = 949132) Radio
Use red slider bar for more.

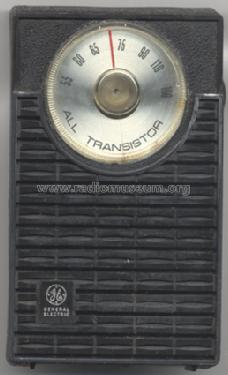

P1710C ; General Electric Co. (ID = 630938) Radio
General Electric Co.: P1710C [Radio] ID = 630938 259x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model P1710C, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 2 inch = 5.1 cm
Power out
from Radiomuseum.org Model: P1710C - General Electric Co. GE;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 110 x 30 mm / 2.8 x 4.3 x 1.2 inch
Notes Silicon transistor. Unusual magnetic type speaker, very close to those in use during 20's. Poor audio fidelity. With carrying case High impedance speaker with reed suspended between 2 pole pieces, drives paper cone with a stylus, and is directly driven in push-pull by a pair of collectors, without an audio output transformer. One of several contemporary GE transistor radio models to employ this kind of speaker which was originally used in the 1920's because of it's high efficiency and high impedance.
Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)
Source of data - - Data from my own collection

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
