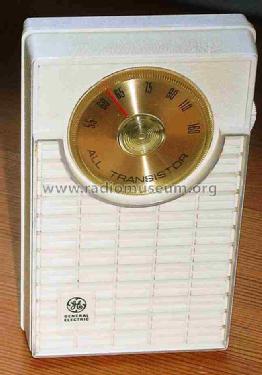

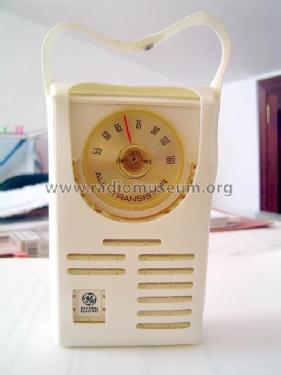

P1711A

• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100559

• • Brand: Musaphonic

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 2 inch = 5.1 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: P1711A - General Electric Co. GE;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 4.5 x 1.25 inch / 70 x 114 x 32 mm

• Notes

• High impedance speaker with reed suspended between 2 pole pieces, drives paper cone with a stylus, and is directly driven in push-pull by a pair of collectors, without an audio output transformer. One of several contemporary GE transistor radio models to employ this kind of speaker which was originally used in the 1920's because of it's high efficiency and high impedance.

  The color is white whereas the model P1710A is black.

• Mentioned in
• SAM Fotofact Folders 1966

• Literature/Schematics (1)
• GE 1966 Portable Radios catalog

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
