P715B

P715B ; General Electric Co. (ID = 130413) Radio

P715B ; General Electric Co. (ID = 772220) Radio

P715B ; General Electric Co. (ID = 772221) Radio

P715B ; General Electric Co. (ID = 772222) Radio

P715B ; General Electric Co. (ID = 772223) Radio

P715B ; General Electric Co. (ID = 772224) Radio

P715B ; General Electric Co. (ID = 772225) Radio
P715B ; General Electric Co. (ID = 2331113) Radio P715B ; General Electric Co. (ID = 2331114) Radio
Use red slider bar for more.

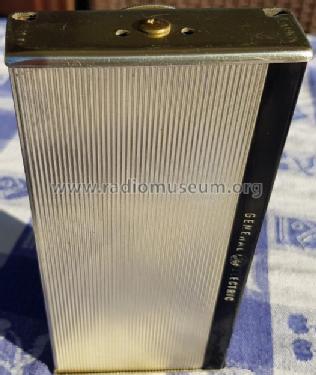

P715B ; General Electric Co. (ID = 2331113) Radio
General Electric Co.: P715B [Radio] ID = 2331113 500x789
Select picture or schematic to display from thumbnails on the right and click for download.
For model P715B, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Ebay-Verk.: ameliechen2002, ArtNr.: 113409683443

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N168A 2N293 2N293 2N323 2N241 2N241
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: P715B - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes The General Electric Model P175B is a Battery Operated Portable AM Transistorized Receiver.
Optional Charger Unit P15A.
Collectors' prices
Source of data Beitman Radio Diagrams, Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-58, Set 417, Folder 5)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
