P807H ; General Electric Co. (ID = 2216192) Radio
General Electric Co.: P807H [Radio] ID = 2216192 933x814
Select picture or schematic to display from thumbnails on the right and click for download.
For model P807H, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: RS5101 RS5201 RS5301 RS5505 RS5602
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: P807H - General Electric Co. GE;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 116 x 60 mm / 7.1 x 4.6 x 2.4 inch
Notes

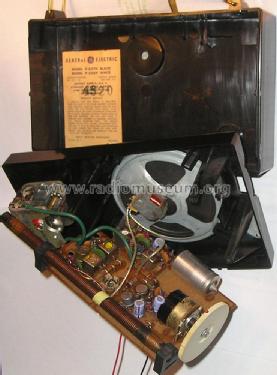

The General Electric P807H is a battery operated portable AM receiver. The AM band frequency tuning range is 540 to 1630kHz.  Has earphone jack that disconnects the speaker for private listening. This radio uses three self-contained circuit boards (modules). Height with unfolded handle.

The P807H is part of the following family of models:

Model Other Models in Family Cabinet Color
P755A None Gray
P805A (Early) P805A (Late) White
P806A (Early) P806A (Late) Blue
P807A P807B, C, E, G, H, I, J, S, T Black
P808A P808B, C, E, G, H, J, S, T White
P809B P809C, E Green

Has high impedance speaker with reed suspended between pole pieces, drives paper cone with a stylus, and is directly driven by a single ended collector, without an audio output transformer. One of several contemporary GE transistor radio models do employ this kind of speaker which was originally used in the 1920's because of it's high efficiency and high impedance.

Net weight (2.2 lb = 1 kg) 0.540 kg / 1 lb 3 oz (1.189 lb)
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 24, 1964 (Page 48)
Literature/Schematics (2) General Electric Service Notes (General Electric Radio Service Guide Volume V 1963 to 1965 page 55)
Literature/Schematics (3) Photofact TSM Transistor Radio Series SAMS (TSM-30, pages 38 to 40, dated November 1963)

Model page created by Egon Penker. See "Data change" for further contributors.
