P977B

P977B ; General Electric Co. (ID = 1197500) Radio P977B ; General Electric Co. (ID = 1197501) Radio
P977B ; General Electric Co. (ID = 1197502) Radio P977B ; General Electric Co. (ID = 1197503) Radio
P977B ; General Electric Co. (ID = 1197505) Radio P977B ; General Electric Co. (ID = 1970635) Radio
P977B ; General Electric Co. (ID = 1970636) Radio P977B ; General Electric Co. (ID = 1970638) Radio
P977B ; General Electric Co. (ID = 1970641) Radio P977B ; General Electric Co. (ID = 1970645) Radio
Use red slider bar for more.
P977B ; General Electric Co. (ID = 1197500) Radio
General Electric Co.: P977B [Radio] ID = 1197500 662x891
Select picture or schematic to display from thumbnails on the right and click for download.

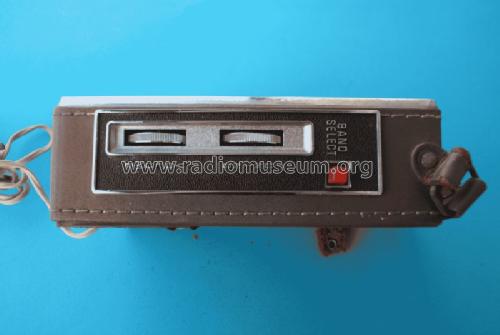

For model P977B, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 13:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 120 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: P977B - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 125 x 190 x 55 mm / 4.9 x 7.5 x 2.2 inch

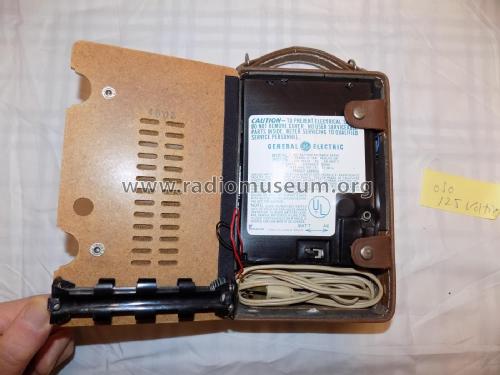

Notes AFC-schaltbar, Köpfhörer über Klinkenbuchse (0,1385 inch), Stabantenne und externe Antenne über Schraubanschlüsse, Batteriehalter für 4 AA-Zellen, Netzkabel unter dem Batteriehalter verstaut.
Net weight (2.2 lb = 1 kg) 0.933 kg / 2 lb 0.9 oz (2.055 lb)

Model page created by Manfred Rauschen. See "Data change" for further contributors.
