Superadio (III) 7-2887A

Superadio 7-2887A; General Electric Co. (ID = 813929) Radio Superadio 7-2887A; General Electric Co. (ID = 613578) Radio
Superadio 7-2887A; General Electric Co. (ID = 813930) Radio Superadio 7-2887A; General Electric Co. (ID = 813931) Radio
Superadio 7-2887A; General Electric Co. (ID = 813932) Radio Superadio 7-2887A; General Electric Co. (ID = 813933) Radio
Superadio 7-2887A; General Electric Co. (ID = 813934) Radio Superadio 7-2887A; General Electric Co. (ID = 813935) Radio
Superadio 7-2887A; General Electric Co. (ID = 880817) Radio Superadio 7-2887A; General Electric Co. (ID = 880818) Radio
Use red slider bar for more.

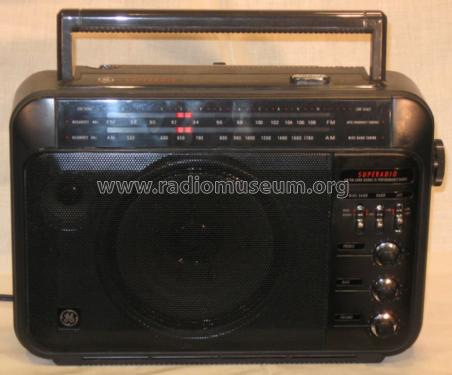

Superadio 7-2887A; General Electric Co. (ID = 813929) Radio
General Electric Co.: Superadio 7-2887A [Radio] ID = 813929 745x642
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superadio (III) 7-2887A, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Ebay US 140444098099 am-fm-sw / adopted pic. / Made in China version!

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1992 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 120 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: Superadio 7-2887A - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13 x 9 x 4 inch / 330 x 229 x 102 mm
Notes

General Electric GE Superadio (III) 7-2887A;
6.5" & 2" speaker, 2 IC's, AFC, bass & treble control, ext. screw antenna in.

Literature/Schematics (1) - - Manufacturers Literature

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Here you find 2745 models, 1918 with images and 1939 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
