- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309987
-
- Brand: Musaphonic
- Number of Tubes
- 6
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50 - 60 Hz; 105-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: T1245A - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 9 x 7 inch / 368 x 229 x 178 mm
- Notes
-
Two speakers: one is 4" diameter, the other 3.3" diameter.

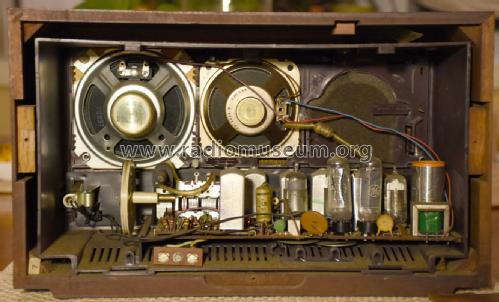

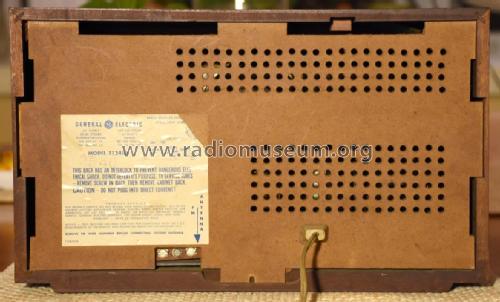

The cabinet is wood on the exterior however the chassis is housed in a plain brown plastic enclosure that slides into the wooden cabinet.
- Net weight (2.2 lb = 1 kg)
- 6.8 lb (6 lb 12.8 oz) / 3.087 kg
- Author
- Model page created by Howard Mariotti. See "Data change" for further contributors.
