For model T142A, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Ebay Seller: touchofthepast39 Item Number: 271217870437 General electric T142A Front View #1

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC 50 to 60 cycles, 105 to 120V or DC 105 to 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: T142A - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 6.2 x 5.3 inch / 305 x 157 x 135 mm
Notes

The General Electric T142A is an AC/DC operated 5 tube BC band receiver.  The BC band range is 540 to 1600 kHz.  Has Qty(2) PM 4" speakers. Also has built-in loop antenna. Cabinet color is Antique White.

The following models use the same schematic and cabinet but have different cabinet colors:

Model Number Cabinet Color
T140A Sage Green
T141A Rose Beige
T142A Antique White
T143A Walnut Grain

Sams photofact set 479 folder 7 date 3-60 features the General Electric models C450A, C450B, C451A, C451B, C452A, C452B, T140A and T141A as the same schematic. T140A and T141A without clock.  Beitmans Volume 20, 1960, page 44 features General Electric models T140A and T141A as the same schematic.  Since the General Electric Service Manual lists all 4 models using the same schematic but having just different cabinet colors, then all these models can use these reference documents for the schematics and alignment data.

Source of data Beitman Radio Diagrams, Vol. 20, 1960

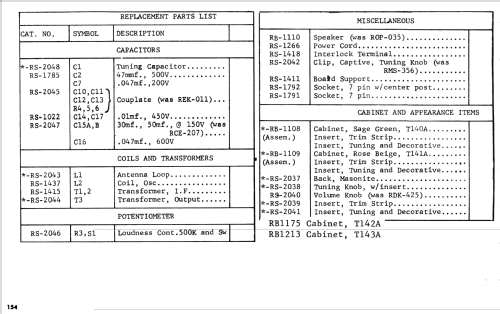

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 479 folder 7 date 3-60)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 20, 1960 (Page 44)
Literature/Schematics (3) General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 154)

Model page created by John Kusching. See "Data change" for further contributors.
