T155A

T155A ; General Electric Co. (ID = 52828) Radio

T155A ; General Electric Co. (ID = 566257) Radio

T155A ; General Electric Co. (ID = 566259) Radio

T155A ; General Electric Co. (ID = 566261) Radio

T155A ; General Electric Co. (ID = 566262) Radio

T155A ; General Electric Co. (ID = 1429682) Radio

T155A ; General Electric Co. (ID = 1429684) Radio
T155A ; General Electric Co. (ID = 2063379) Radio T155A ; General Electric Co. (ID = 2063378) Radio
T155A ; General Electric Co. (ID = 2063376) Radio T155A ; General Electric Co. (ID = 2063380) Radio
T155A ; General Electric Co. (ID = 2063381) Radio T155A ; General Electric Co. (ID = 2063382) Radio
T155A ; General Electric Co. (ID = 2063383) Radio T155A ; General Electric Co. (ID = 2063384) Radio
T155A ; General Electric Co. (ID = 566260) Radio T155A ; General Electric Co. (ID = 1429674) Radio
Use red slider bar for more.
T155A ; General Electric Co. (ID = 2063379) Radio
General Electric Co.: T155A [Radio] ID = 2063379 1181x760
Select picture or schematic to display from thumbnails on the right and click for download.
For model T155A, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4

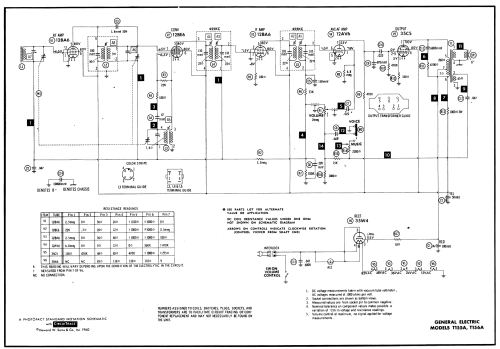

schematic requested
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC 50 to 60 cycles, 105 to 120V or DC 105 to 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: T155A - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

The General Electric T155A is an AC/DC operated 6 tube BC band receiver.  BC band range is 540 to 1600kHz.  Has built-in loopstick antenna and two position tone control.  Uses dial lamp #12. Cabinet color is Cocoa.  Beitman lists speaker size as 4", but General Electric service notes list speaker as 6".

The following models use the same schematic and cabinet but have different cabinet colors:

Model Number Cabinet Color
T155A Cocoa
T156A Gray



Source of data Beitman Radio Diagrams, Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 483 folder 7 date 5-60)
Literature/Schematics (2) General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 158)
Literature/Schematics (3) Beitman Radio Diagrams, Vol. 20, 1960 (Page 46)

Model page created by Trev Levick. See "Data change" for further contributors.
