Musaphonic Dual Speaker T-210B

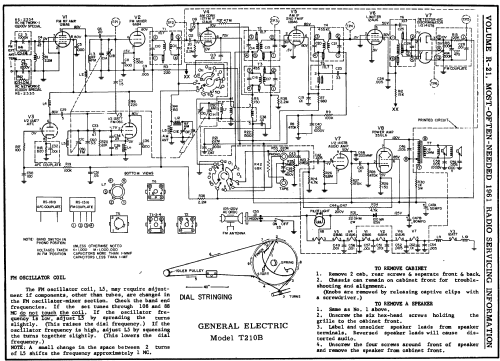

Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 143799) Radio
Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 462431) Radio Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 936028) Radio
Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 936029) Radio Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 936030) Radio
Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 1004152) Radio
Use red slider bar for more.
Musaphonic Dual Speaker T-210B; General Electric Co. (ID = 462431) Radio
General Electric Co.: Musaphonic Dual Speaker T-210B [Radio] ID = 462431 768x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musaphonic Dual Speaker T-210B, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 12BA6 6AB4 12AT7 12AU6 12BA6 12AU6 14GT8 35GL6
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 105 - 120 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Musaphonic Dual Speaker T-210B - General Electric Co. GE;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14 x 9.5 x 8 inch / 356 x 241 x 203 mm
Notes

General Electric Table Top AM-FM Radio Model Musaphonic Dual Speaker T-210B.
Tuning Range: AM 540 - 1600 kHz, FM 88 - 108 MHz.
Power Consumption 45 Watts.

Color=Mocha/Beige

Source of data Beitman Radio Diagrams, Vol. 21, 1961
Mentioned in Collector's Guide to Antique Radios (6th edition)

Model page created by Egon Penker. See "Data change" for further contributors.
