• Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 110162
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455; 10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120; Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: T-1000C - General Electric Co. GE;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 19 x 9 x 12.5 inch / 483 x 229 x 318 mm
  • Notes

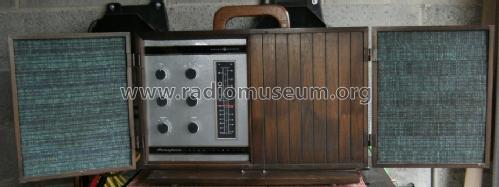

  • Stereophonic Hi-Fi Radio, Walnut Version, FM-AFC, Built-in telescopic antenna.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
