Variable Reluctance Pick-Up
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1949 ?
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 353708
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Variable Reluctance Pick-Up - General Electric Co. GE;
- Shape
- Chassis only or for «building in»
- Notes
-
This new pick-up has a sapphire or diamond stylus that is incredibly small and stiff, less than 1/16th in length and having an included angle of 50° with a tip radius of 0.003 in. This form represents the maximum possible stiffness.
The dynamic mass of the stylus is 8 by 10-3 gm, and it is mounted vertically.
Only between 3/4 oz. and 1 1/4 oz. pressure is required to track satisfactorily.
The pick-up is less than 1 3/4 in. long by 3/4 in. wide.
- Mentioned in

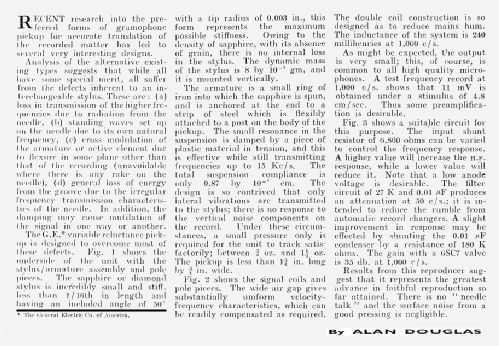

- -- Original-techn. papers. (Electronic Engineering, January 1949, page 21.)
