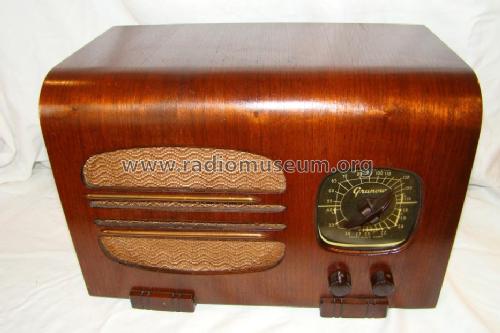

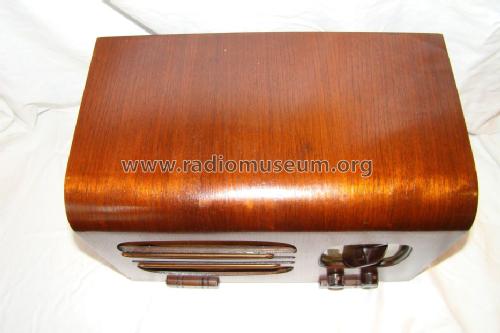

Grunow 576 Ch= 5-T

Grunow 576 Ch= 5-T; General Household (ID = 683208) Radio
Grunow 576 Ch= 5-T; General Household (ID = 720873) Radio Grunow 576 Ch= 5-T; General Household (ID = 1302340) Radio
Grunow 576 Ch= 5-T; General Household (ID = 1302341) Radio Grunow 576 Ch= 5-T; General Household (ID = 1302343) Radio
Grunow 576 Ch= 5-T; General Household (ID = 1006664) Radio Grunow 576 Ch= 5-T; General Household (ID = 1006665) Radio
Grunow 576 Ch= 5-T; General Household (ID = 1302339) Radio Grunow 576 Ch= 5-T; General Household (ID = 1302344) Radio
Grunow 576 Ch= 5-T; General Household (ID = 1302345) Radio Grunow 576 Ch= 5-T; General Household (ID = 1655718) Radio
Use red slider bar for more.
Grunow 576 Ch= 5-T; General Household (ID = 720873) Radio
General Household: Grunow 576 Ch= 5-T [Radio] ID = 720873 583x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grunow 576 Ch= 5-T, General Household Utilities Co. (Grunow); Chicago Ill.:
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 76 41 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Grunow 576 Ch= 5-T - General Household Utilities Co
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.5 x 8.875 x 7.75 inch / 343 x 225 x 197 mm
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Machine Age to Jet Age II

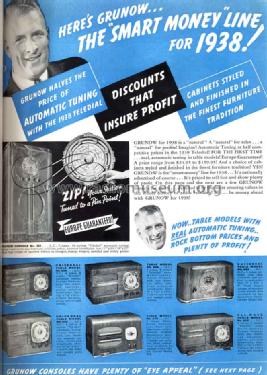

Literature/Schematics (1) Radio Retailing (Radio & Television R.) (June 1937.)
Literature/Schematics (3) The Grunow Folder for 1938.


All listed radios etc. from General Household Utilities Co. (Grunow); Chicago Ill.
Here you find 138 models, 99 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
