For model F60, Général-Radio; Dijon

Country:  France
Manufacturer / Brand:  Général-Radio; Dijon
alternative name

General-Radio
Year: 1939 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH3 EBF2 EF9 EL3N EM4 1883
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: F60 - Général-Radio; Dijon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 390 x 260 mm / 21.3 x 15.4 x 10.2 inch
Notes

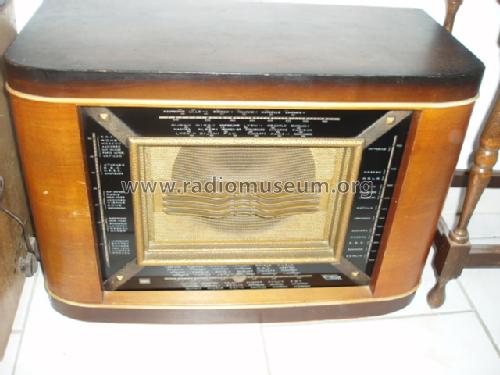

Général-Radio F60 is an AC operated 6 tube 3 band superheterodyne receiver.
The loudspeaker grille is surrounded by 4 dials:
The left one for SW (18 to 51m), bottom and top dials for MW (foreign and dometic stations separated) and the right one for LW.

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Literature/Schematics (1) -- Schematic

Model page created by Dietmar Luppold. See "Data change" for further contributors.
