Solid State Six Band TF-161 (Japan 901)

General Corp. / Fujitsu General, Ltd.; Kawasaki

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
General Corp. / Fujitsu General, Ltd.; Kawasaki

Year
1968/1969 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
361188

Schematics

Solid State Six Band TF-161 ; General Corp. / (ID = 3142300) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142302) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142311) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142317) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142321) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142323) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142329) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142335) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

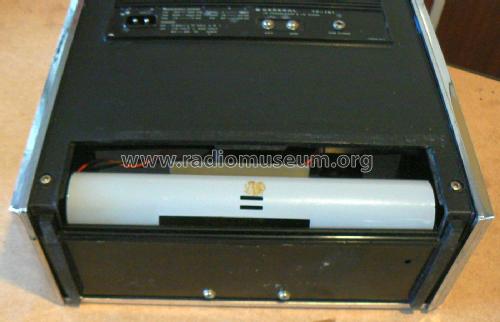

Solid State Six Band TF-161 ; General Corp. / (ID = 3142341) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142344) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Solid State Six Band TF-161 ; General Corp. / (ID = 3142345) Radio — General Corp. / Solid State Six Band TF-161 (2)
Trademe NZ Listing #5302922892.

Technical Specifications

Number of Transistors
16

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Line / Batteries (any type) / 115; 230 / D: 4 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Solid State Six Band TF-161 - General Corp. / Fujitsu

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
255 x 330 x 100 mm / 10 x 13 x 3.9 inch

Notes
General TF-161

6 band receiver with two telescopic antennas, and earphone jack.

Wavebands:
- LW = 150 - 350 kHz
- MW = 530 - 1600 kHz
- MB = 1.6 - 4 MHz
- SW1 = 4 - 12 MHz
- SW2 = 12 - 22 MHz
- FM = 87 - 108 MHz
See also Teleton TF-161 and World Master RE-7000.

Made in Japan 901

Author
Model page created by Brian Stevens. See "Data change" for further contributors.
