• Country
• United States of America (USA)

• Manufacturer / Brand
• General Television and Radio Corp.; Chicago, IL

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200731

• • Brand: General

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35Z5 50L6

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 90 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Wooden case

• from Radiomuseum.org

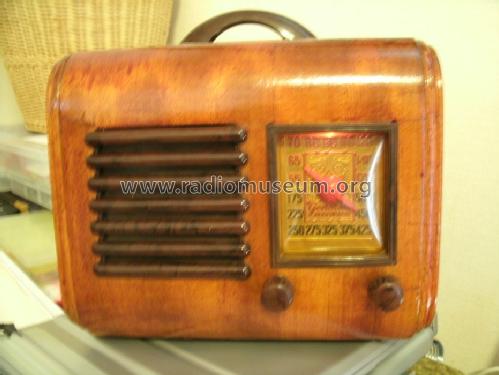

• Model: 2A5 ch= 1-1 - General Television and Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9 x 7.25 x 5.5 inch / 229 x 184 x 140 mm

• Notes
• Similar Chassis 1-1 employed in models 1A5, 3A5, 5A5, 15A5, 19A5.
  Brown Trim or Ivory Trim.

• Net weight (2.2 lb = 1 kg)
• 4.8 lb (4 lb 12.8 oz) / 2.179 kg

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 1, Folder 21, January 1947)
