• Country
• Spain

• Manufacturer / Brand
• General Eléctrica Española (GEE); Madrid

• Year
• 1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 279954

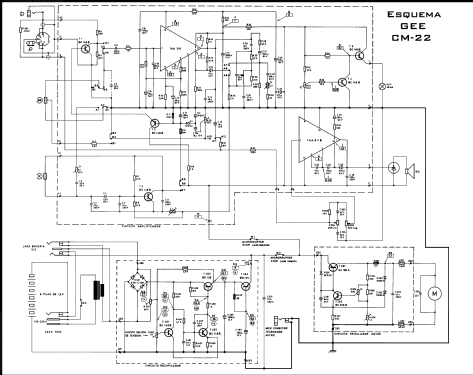

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BC148 BC148 BC148 BC148 BC148 BC148 BC148 BD136 BD135 AC180 BC208 TAA310 TAA611 SD60 SFD112 B30C350

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 125-220 / 12 / C: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Magnetofono Cassette CM22 - General Eléctrica Española GEE

• Shape
• Portable set > 8 inch (also usable without mains)

• Literature/Schematics (1)

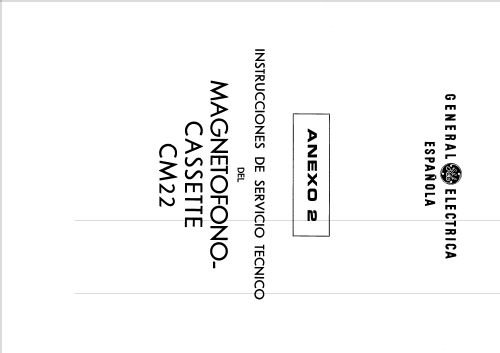

• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
