105

105 ; Gilfillan Bros.Inc.; (ID = 700995) Radio
Use red slider bar for more.
105 ; Gilfillan Bros.Inc.; (ID = 700995) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 24A 24A 24A 24A 45 80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 105 - Gilfillan Bros.Inc.; Los
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes One dial (primary tuning control knob)
Price in first year of sale 99.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

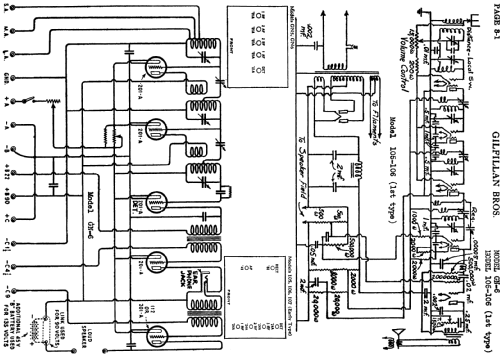

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
