13C8

13C8 ; Gilfillan Bros.Inc.; (ID = 1368575) Radio 13C8 ; Gilfillan Bros.Inc.; (ID = 1368576) Radio
13C8 ; Gilfillan Bros.Inc.; (ID = 1368577) Radio 13C8 ; Gilfillan Bros.Inc.; (ID = 1368578) Radio
13C8 ; Gilfillan Bros.Inc.; (ID = 1368579) Radio 13C8 ; Gilfillan Bros.Inc.; (ID = 1368580) Radio
13C8 ; Gilfillan Bros.Inc.; (ID = 1368581) Radio 13C8 ; Gilfillan Bros.Inc.; (ID = 1368582) Radio
Use red slider bar for more.
13C8 ; Gilfillan Bros.Inc.; (ID = 1368575) Radio

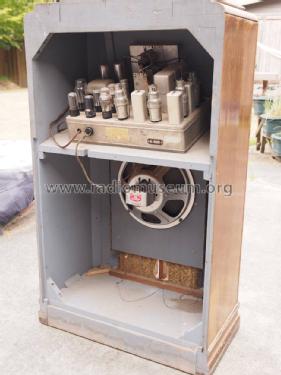

Gilfillan Bros.Inc.;: 13C8 [Radio] ID = 1368575 933x1244
Select picture or schematic to display from thumbnails on the right and click for download.
For model 13C8, Gilfillan Bros.Inc.; Los Angeles (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6K7G 6A8G 6K7G 6K7G 6U5G 6H6G 6F5G 6C5G 6C5G 6F6G 6F6G 5Y3 5Y3
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: 13C8 - Gilfillan Bros.Inc.; Los
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 25 x 43 x 14 inch / 635 x 1092 x 356 mm
Notes

Sensitivity and Tone controls.  Tuning eye. Push-pull af output stage.

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before

Model page created by Rodney Boleyn. See "Data change" for further contributors.
