• Country
• United States of America (USA)

• Manufacturer / Brand
• Gilfillan Bros.Inc.; Los Angeles (CA)

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158980

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 58 57 2A5 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); none

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

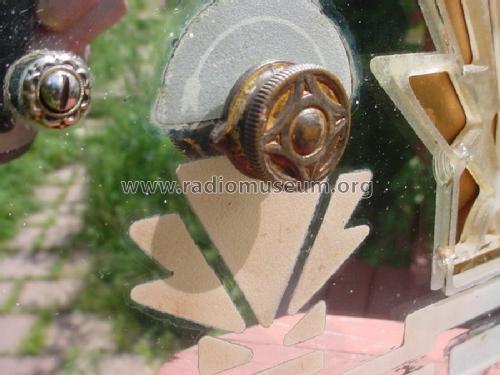

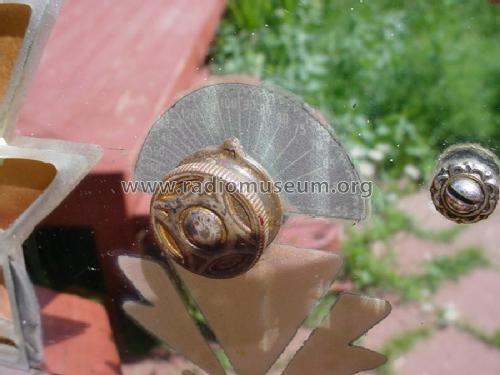

• Model: 30 [late] - Gilfillan Bros.Inc.; Los

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• There is also a completely different early model, a console from 1926.

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 186 models, 114 with images and 129 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gilfillan Bros.Inc.; Los Angeles (CA)
