• Country
• United States of America (USA)

• Manufacturer / Brand
• Gilfillan Bros.Inc.; Los Angeles (CA)

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43068

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J7 6K7 6H6 6F5 6F6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 62-B-X - Gilfillan Bros.Inc.; Los

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14.75 x 10 x 7.5 inch / 375 x 254 x 191 mm

• Notes

• .

• External source of data
• Ernst Erb

• Circuit diagram reference

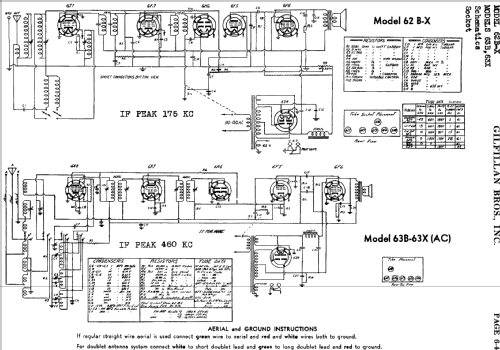

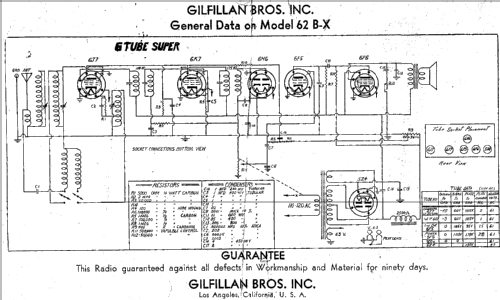

• Rider's Perpetual, Volume 6 = 1935 and before

• Literature/Schematics (3)
• The Gilfillan Folder for 1936.

• Other Models

• Here you find 186 models, 114 with images and 129 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gilfillan Bros.Inc.; Los Angeles (CA)
