GN-6

GN-6 ; Gilfillan Bros.Inc.; (ID = 701004) Radio

GN-6 ; Gilfillan Bros.Inc.; (ID = 2298318) Radio

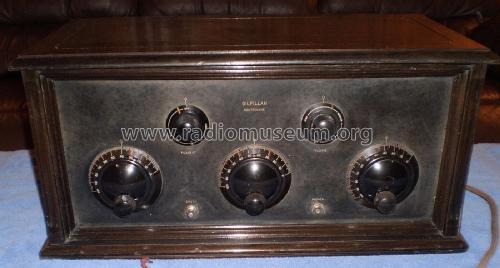

GN-6 ; Gilfillan Bros.Inc.; (ID = 2083998) Radio GN-6 ; Gilfillan Bros.Inc.; (ID = 2083999) Radio
GN-6 ; Gilfillan Bros.Inc.; (ID = 2084000) Radio GN-6 ; Gilfillan Bros.Inc.; (ID = 2084001) Radio
GN-6 ; Gilfillan Bros.Inc.; (ID = 2084002) Radio GN-6 ; Gilfillan Bros.Inc.; (ID = 2084003) Radio
GN-6 ; Gilfillan Bros.Inc.; (ID = 2084004) Radio
Use red slider bar for more.
GN-6 ; Gilfillan Bros.Inc.; (ID = 2083998) Radio
Gilfillan Bros.Inc.;: GN-6 [Radio] ID = 2083998 1400x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model GN-6, Gilfillan Bros.Inc.; Los Angeles (CA):
eBay item number:282357003378

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1925/1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UX201A UX201A UX201A UX201A UX201A or UX112
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker
Power out
from Radiomuseum.org Model: GN-6 - Gilfillan Bros.Inc.; Los
Material Wooden case
Shape Console with any shape - in general
Notes Two dials (primary tuning control knobs)
Price in first year of sale 350.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (2) Radio Manufacturers of the 1920's, Vol. 2 (page 47)


All listed radios etc. from Gilfillan Bros.Inc.; Los Angeles (CA)
Here you find 184 models, 111 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
