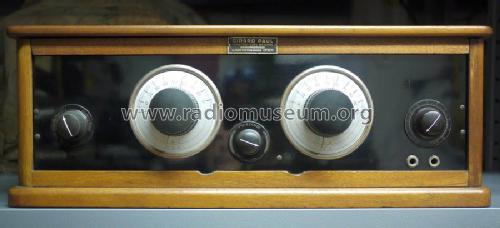

Girard Frères,: inconnu - unknown 5 Lampes [Radio] ID = 1356850 900x411
Select picture or schematic to display from thumbnails on the right and click for download.
For model inconnu - unknown 5 Lampes, Girard Frères, Girard Paul; Lyon

Country:  France
Manufacturer / Brand:  Girard Frères, Girard Paul; Lyon
Year: 1927 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: MX40_Fotos YD4 YD4 D100 D9
Main principle Super-Heterodyne (Super in general); ZF/IF 50 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: inconnu - unknown 5 Lampes - Girard Frères, Girard Paul;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 590 x 216 x 232 mm / 23.2 x 8.5 x 9.1 inch
Notes

Possibly in kit form.



Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

Model page created by Gianluigi Miazzi. See "Data change" for further contributors.
