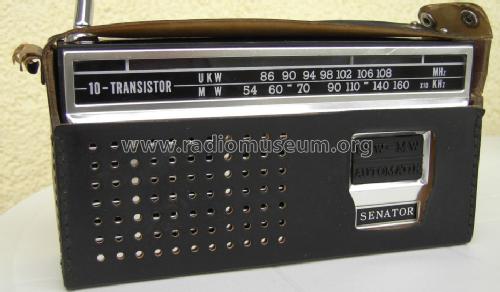

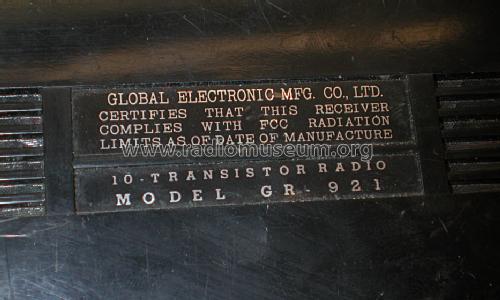

Senator GR-921
Global Mfg. Co.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Global Mfg. Co.; Tokyo
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228524
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / UM3: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Senator GR-921 - Global Mfg. Co.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 190 x 103 x 50 mm / 7.5 x 4.1 x 2 inch
- Notes
-
Senator GR-921 was probably manufactured for Quelle GmbH, Fürth/Nürnberg (Germany).
See also the similar models Simonetta GR-920 and Senator GR-920.AM/FM/AFC supplied with leatherette case
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Author
- Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
- Other Models
-
Here you find 29 models, 28 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Global Mfg. Co.; Tokyo
