- Country
- United States of America (USA)
- Manufacturer / Brand
- Globe Electronics, Inc.; New York
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232465
-
- Brand: Duedyne
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Radio with other functions
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.4 inch = 8.6 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 85 - Globe Electronics, Inc.; New
- Dimensions (WHD)
- 12.5 x 9 x 4.5 inch / 318 x 229 x 114 mm
- Notes
-

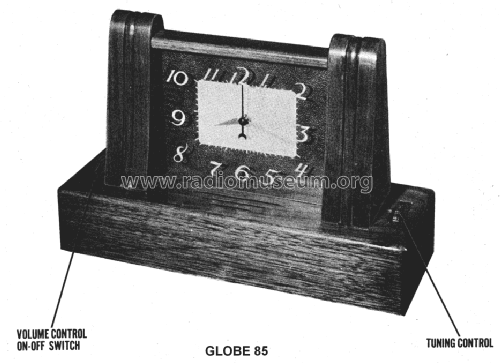

AC Operated Superheterodyne Receiver with Electric clock.
- Net weight (2.2 lb = 1 kg)
- 6 lb (6 lb 0 oz) / 2.724 kg
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol.5 11/48 4819-9 Set 49 Folder 9)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
