Globe Sidebander DSB-100

Globe Sidebander DSB-100; World Radio (ID = 709775) Amateur-T
Globe Sidebander DSB-100; World Radio (ID = 1961588) Amateur-T
Use red slider bar for more.
Globe Sidebander DSB-100; World Radio (ID = 1961588) Amateur-T
World Radio: Globe Sidebander DSB-100 [Amateur-T] ID = 1961588 1038x739
Select picture or schematic to display from thumbnails on the right and click for download.
For model Globe Sidebander DSB-100, World Radio Laboratories (WRL), (Globe Electronics); Council Bluffs, IA:
Test in "CQ", Ausgabe 12/1958

Country:  United States of America (USA)
Manufacturer / Brand:  World Radio Laboratories (WRL), (Globe Electronics); Council Bluffs, IA
Year: 1958 Category: Amateur Transmitter (only)
Valves / Tubes 9: 6CL6 6CL6 6DQ6 6DQ6 12AX7 6AL5 12AX7 6AQ5 5U4
Main principle Radio Frequency Amplification only
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Globe Sidebander DSB-100 - World Radio Laboratories WRL,
Material Metal case
Shape Tablemodel, low profile (big size).
Notes Bandswitching 80m - 10m Sideband Xmttr, for three modes of operation (100W PEP suppressed carrier, 40W AM or 50W CW) can be used with standard Xtals and regular (external) VFO. Carrier suppression 45dB or better. Continuous band coverage 3 - 9 MHz and 12 - 30 MHz. 3-stage RF section allows straight through operation. Pi-net 52 - 300 ohms. Speech clipping, provisions for antenna relay control, ceramic band and function switches. Available as kit for 119.95 $ or wired with tubes for 139.95 $.
Price in first year of sale 140.00 $

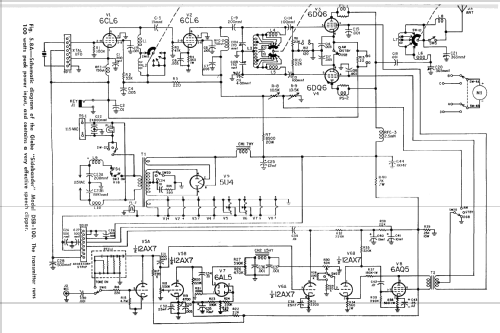

Mentioned in -- Schematic (ARRL Handbook 1959)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
