Television Set Midget Cabinet
Globe Television & Phone Corp.; Boston, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Globe Television & Phone Corp.; Boston, MA
- Year
- 1932
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 43161

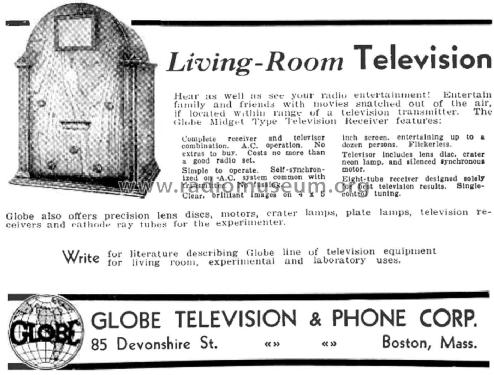

Television News May/June 1932 page 92
Television News May/June 1932 page 92
Television News July/August 1932
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Police (only 50-200m).
- Details
- Mechanical Television
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Television Set Midget Cabinet - Globe Television & Phone Corp.
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 16.5 x 24.5 x 14.5 inch / 419 x 622 x 368 mm
- Notes
-
The Globe Television and Phone Television Set is a mechanical scanning unit with a synchronous motor, operating from 100 to 150 meters. The picture measures 4 by 5.5 inches. The disc is a 60 line type with 60 corrected lenses. It is housed in a walnut finished cabinet.
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- Television News May/June 1932 pages 92 and 103
